Recipe Events

PlanetsLib includes one event that recipes can hook into using RecipePrototype::PlanetsLib_recipe_effects. This event adds items to the machine's ingredient inventory on craft. Additional events may be added in the future.

RecipePrototype field: PlanetsLib_recipe_effects [table]

• returned_ingredients [table(ItemProduct)]
  • When this field is defined, returned items are inserted into the crafting machine's input. The field must be defined before data-final-fixes. PlanetsLib sets raise_on_crafted on the recipe and adds a tooltip describing the return.
  • Only items are supported. Defining type = "fluid" raises an error during data-final-fixes.
  • Supported fields:
    • name (ItemID) — The item to return. It should match an ingredient of the recipe so PlanetsLib can track its production statistics.
    • type — Must be "item".
    • amount (number) — The number of items returned per craft, or per batch when using batch_count.
    • independent_probability (number, 0–1) — Rolls separately for this returned ingredient on every craft.
    • shared_probability ({min, max}, 0–1) — Uses the craft's shared roll. The ingredient is returned when the roll is between min and max, inclusive. min defaults to 0 and max to 1.
    • ignored_by_productivity (number) — On a productivity-bonus craft, PlanetsLib returns amount - ignored_by_productivity instead of amount. This returns the base amount on a normal craft without duplicating the ignored part on bonus crafts.
    • batch_count (positive number) — On a normal craft, instead of returning amount every craft, PlanetsLib inserts amount * batch_count items with probability 1 / batch_count. This reduces the frequency of insertions without changing the expected return rate. (Earlier documentation called this field batch_size; the implementation uses batch_count.)
  • If neither probability field is set, the ingredient is returned on every craft.
  • PlanetsLib derives the internal fields add_to_stats, amount_minus_ignored_by_productivity, inverse_batch_count, and no_probability during data-final-fixes. Do not set these yourself.
  • When the returned item matches a recipe ingredient, PlanetsLib sets that ingredient's ignored_by_stats to its full amount. Do not rely on a custom ignored_by_stats value for that ingredient.

Known limitations

• The tooltip displays shared_probability as a percentage ((max - min) * 100), but independent_probability as the raw 0–1 value. This is a cosmetic inconsistency.
• When batching skips an insertion, the skipped return is not reflected in the machine's production statistics. Returned items are also not subtracted from consumption statistics.
• The derived add_to_stats value is currently unused by the runtime handler.

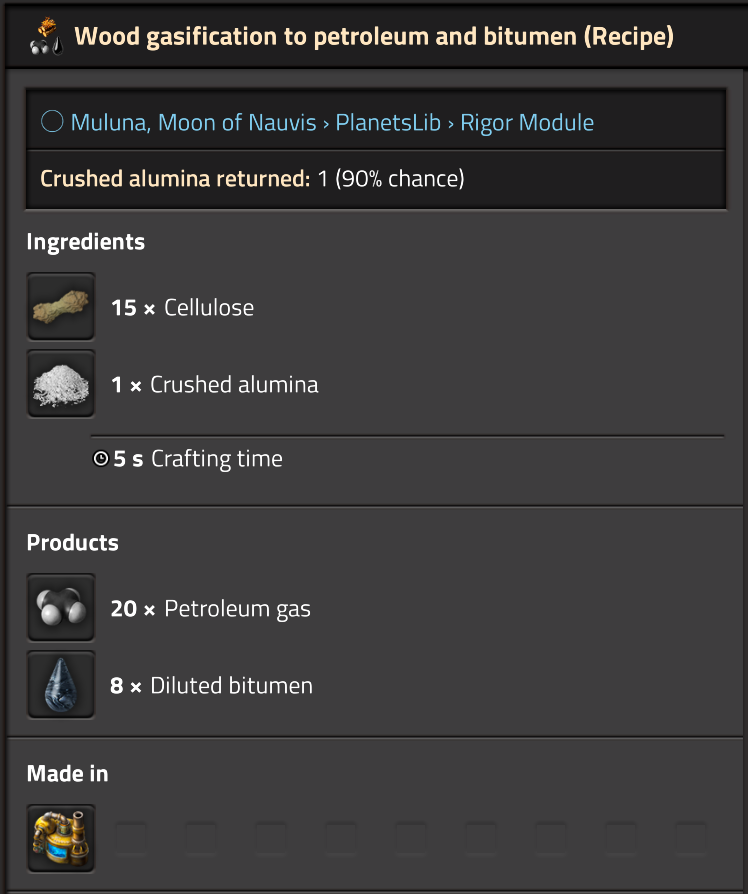

Example

    ingredients = {
      {type="item", name="cellulose", amount=15},
      {type="item", name="alumina-crushed", amount=1},
    },
    results = {
      {type="fluid", name="petroleum-gas", amount=20},
      {type="fluid", name="tar", amount=8},
    },
    PlanetsLib_recipe_effects = {
      returned_ingredients = {
        {type="item", name="alumina-crushed", amount=1,shared_probability = {min=0,max=0.9},ignored_by_productivity=1},
      },
    },
