Science & Technologies

  • PlanetsLib.get_child_technologies(tech_name) — Returns a list of the names of all technologies that have tech_name as a prerequisite. Throws an error if tech_name is not a valid technology.
  • PlanetsLib.sort_science_pack_names(science_pack_names_table) — Sorts the given list of science pack names (strings expected) by the order fields of the corresponding prototypes, or by their names if an order field does not exist.
    • This is useful for defining the inputs of labs because (unlike in Factoriopedia) science packs displayed in labs aren't ordered by the order field.

Recipe productivity technology helper field​

PlanetsLib adds a new field named PlanetsLib_recipe_productivity_effects to TechnologyPrototype, used by recipe productivity technologies. During data-final-fixes, technologies with this field will have their effects list appended or replaced with recipes matching either an output name or recipe category. Recipes will be excluded if they have the field PlanetsLib_blacklist_technology_updates set to true.

Recipe products are ignored if they are not "productivity-capable"—if ignored_by_productivity is greater than or equal to amount (or amount_max)—because changing a recipe's productivity has no effect on such products. If a recipe has no productivity-capable products, it is fully ineligible; and if a recipe has multiple products, but only one product is productivity-capable (e.g. Kovarex enrichment), it is eligible even if allow_multiple_results = false.

If a technology with PlanetsLib_recipe_productivity_effects defined (and valid) has no effects after PlanetsLib has finished processing it, the technology is excised using PlanetsLib.excise_tech_from_tech_tree unless PlanetsLib_recipe_productivity_effects.force_do_not_excise is set to true.

TechnologyPrototype field: PlanetsLib_recipe_productivity_effects Properties:​

  • effects: table[ChangeResultProductivityModifier]
  • category_blacklist - table[RecipeCategoryID]. Recipes in these categories are skipped. Defaults to { "recycling" }. Must be omitted when using a category filter.
  • purge_other_effects- boolean. Default: false. Before adding effects added by PlanetsLib_recipe_productivity_effects, remove all effects not flagged with PlanetsLib_force_include.
  • allow_recipes_without_productivity - boolean. Default: false. Captures recipes even if they have allow_productivity set to false.
  • force_do_not_excise - boolean. Default: false. Does not automatically excise this technology even if it has no effects.
  • technology_name - string. If this field is defined, PlanetsLib_recipe_productivity_effects does not apply if this field is not equal to the technology name. Acts as a check to prevent deepcopies of vanilla recipe productivity technologies from unknowingly receiving these effects.

ChangeResultProductivityModifier Properties:​

  • name (optional) - ItemID Required if not using category. Incompatible with category.
  • type (optional) - ProductPrototype Required if using name.
  • category (optional) - RecipeCategoryID Required if not using name. Incompatible with name and category_blacklist.
  • allow_multiple_results: boolean. Default: false. When false, only recipes with one (productivity-capable) result are added to the technology's effect list. If multiple results have the same name, they are counted as a single result rather than being counted individually.
Inherited from ChangeRecipeProductivityModifier​
  • change
  • icons (optional)
  • icon (optional)
  • icon_size (optional)
  • hidden (optional)
  • use_icon_overlay_constant (optional)

New BaseModifier field: PlanetsLib_force_include​

  • Makes this modifier immune to purge_other_effects.

New RecipePrototype field: PlanetsLib_blacklist_technology_updates​

  • Stops PlanetsLib from targeting this recipe in technology updates.

Example​

{
   type = "technology",
   name = "thruster-fuel-productivity",
   --Other required fields here
   PlanetsLib_recipe_productivity_effects = {
               purge_other_effects = true,
               effects = {
                   {
                       type = "fluid",
                       name = "thruster-fuel",
                       change = 0.1
                   },
                   {
                       type = "fluid",
                       name = "thruster-oxidizer",
                       change = 0.1
                   },
               }
           }
}

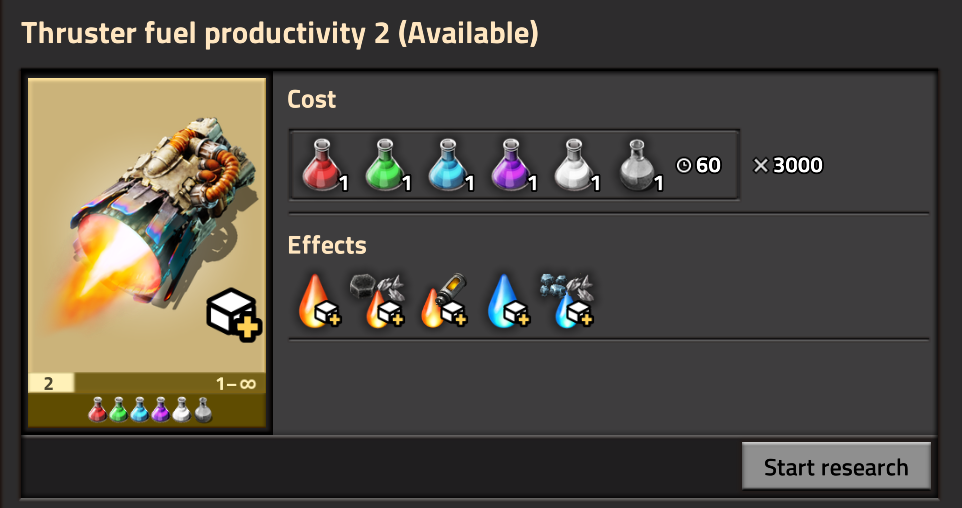

Thruster fuel productivity

Tech tree adjustments​

  • PlanetsLib.excise_tech_from_tech_tree(tech_name) — Seamlessly removes a technology from the tech tree by making all its dependencies depend instead on the technology's prerequisites. In addition, hidden = true is set on the technology.
  • PlanetsLib.excise_recipe_from_tech_tree(recipe_name, include_productivity_effects) — Removes unlocking this recipe from all technologies. If include_productivity_effects is true, also removes any productivity effects of this recipe from all technologies (if called before data-final-fixes, also adds PlanetsLib_blacklist_technology_updates = true to the recipe). If the effect removal(s) leave any technology with zero effects, the technology is excised using PlanetsLib.excise_tech_from_tech_tree.
  • PlanetsLib.excise_effect_from_tech_tree(effect) — Similar to excise_recipe_from_tech_tree, but any effect can be passed.
    • Example: PlanetsLib.excise_effect_from_tech_tree({ type = "unlock-quality", quality = "uncommon" })
  • PlanetsLib.add_science_packs_from_vanilla_lab_to_technology(technology) — Adds all science packs that the vanilla lab have slots for to the unit of the given technology. Can be useful when defining endgame technologies.
